Difference Between Body On Frame And Unibody

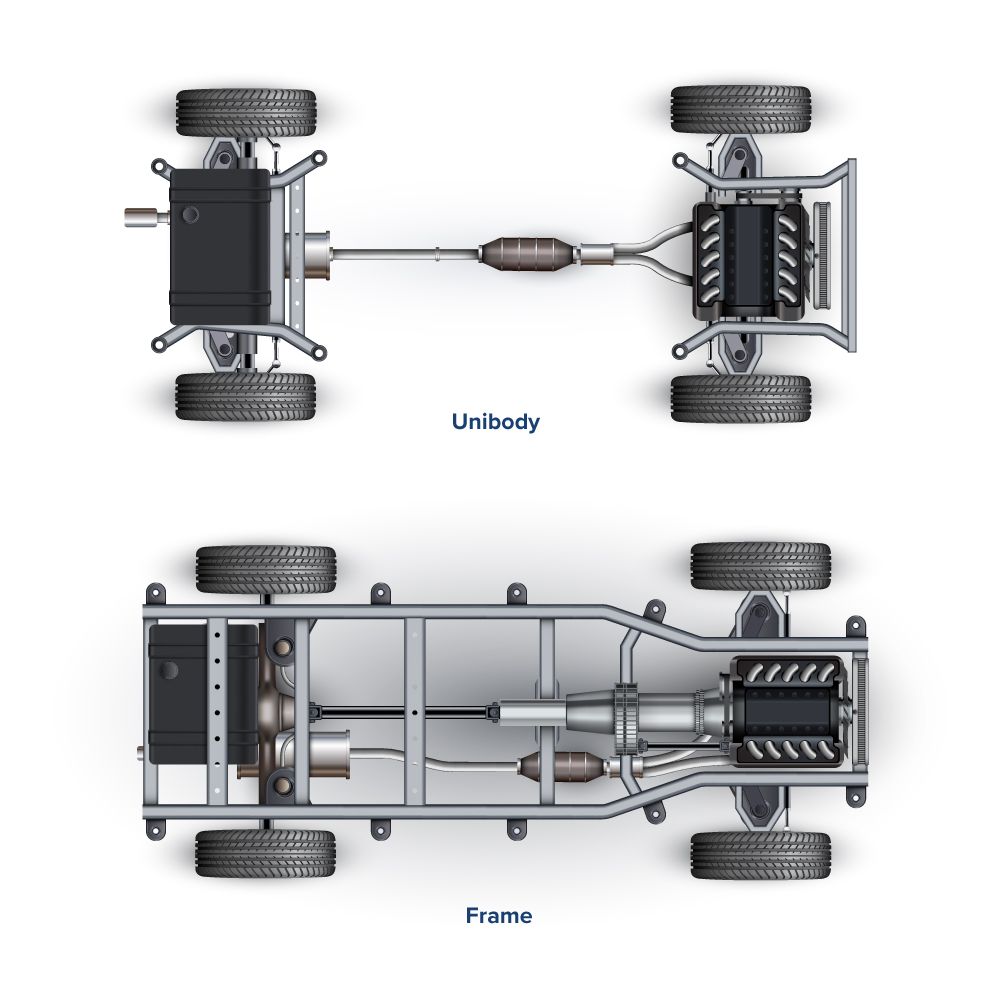

1. Structural Design

Body-On-Frame: The structure consists of two separate components—the body and the frame. The frame serves as a rigid skeleton that supports the engine, transmission, and body, which is mounted on top. This traditional design is commonly used in trucks, SUVs, and larger vehicles.

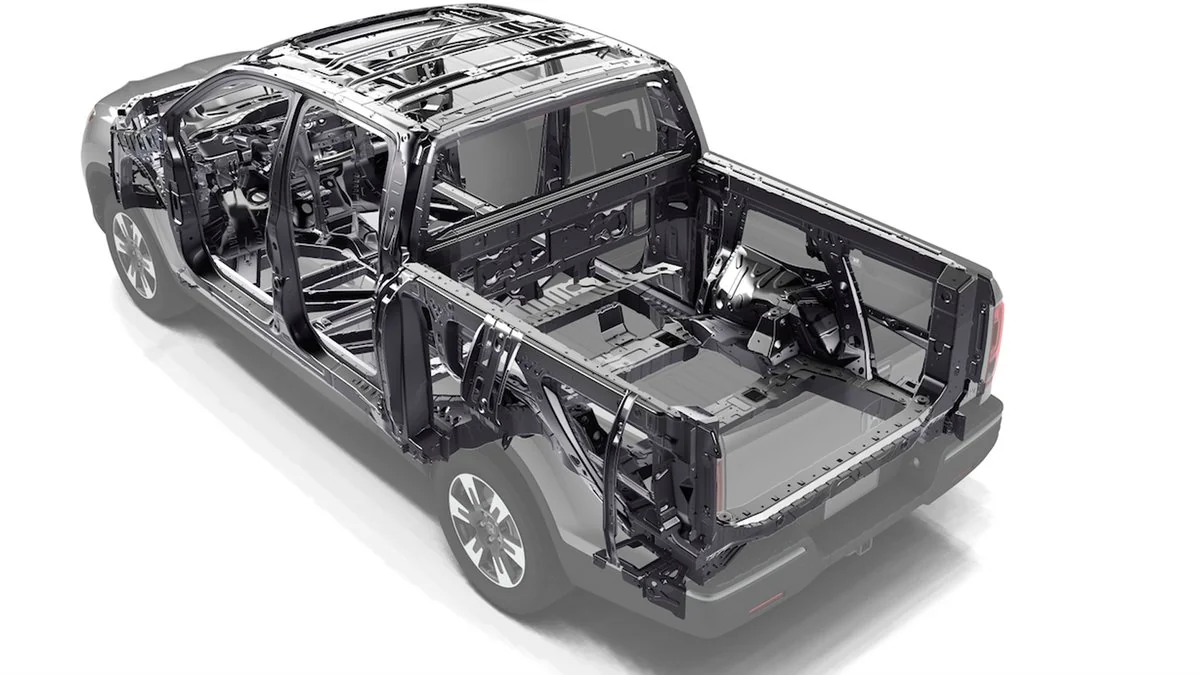

Unibody: In unibody construction, the frame and body are integrated into one piece. This design enhances the vehicle’s overall stiffness and reduces weight. It’s predominantly used in passenger cars and some smaller crossover SUVs.

2. Durability and Off-Road Capability

Body-On-Frame: Offers superior durability and is better suited for rough conditions, including off-road driving. The robust frame can handle more stress, making it ideal for vehicles designed for towing and payload carrying.

Unibody: While unibody structures can be designed to be durable, they generally do not perform as well in extreme off-road conditions as body-on-frame vehicles. The integrated structure can be less forgiving when subjected to the same levels of abuse.

3. Repairability

Body-On-Frame: Damage to the body or frame can often be repaired independently of each other, potentially resulting in lower repair costs after an accident.

Unibody: Repairs can be more complex and expensive, as damage to the vehicle’s exterior can compromise the structural integrity, requiring more extensive work to restore.

4. Handling and Performance

Body-On-Frame: Typically offers less precise handling due to the heavier, more rigid structure. This can result in a rougher ride, particularly on uneven surfaces, and generally slower handling response.

Unibody: Provides better handling and ride quality due to the reduced weight and increased structural rigidity. The vehicle can be more responsive and is generally more stable at higher speeds and on winding roads.

5. Weight and Fuel Efficiency

Body-On-Frame: Heavier due to the dual-component nature of its construction. This additional weight can negatively impact fuel efficiency and acceleration.

Unibody: Lighter overall, which contributes to better fuel economy and improved acceleration. The reduced weight also helps with the lowering of the vehicle’s center of gravity, enhancing stability.

6. Safety

Body-On-Frame: This can be very safe due to the robust nature of the frame, especially in larger vehicles like trucks, where the frame can provide substantial protection in a crash.

Unibody: Often excels in crash tests due to the ability to design crumple zones that absorb impacts more effectively. The integrated body structure can be engineered to enhance occupant protection dynamically during collisions.

7. Manufacturing Complexity and Cost

Body-On-Frame: The manufacturing process can be less complex since the body and frame are built separately, which might be advantageous in terms of modifying or customizing the vehicle.

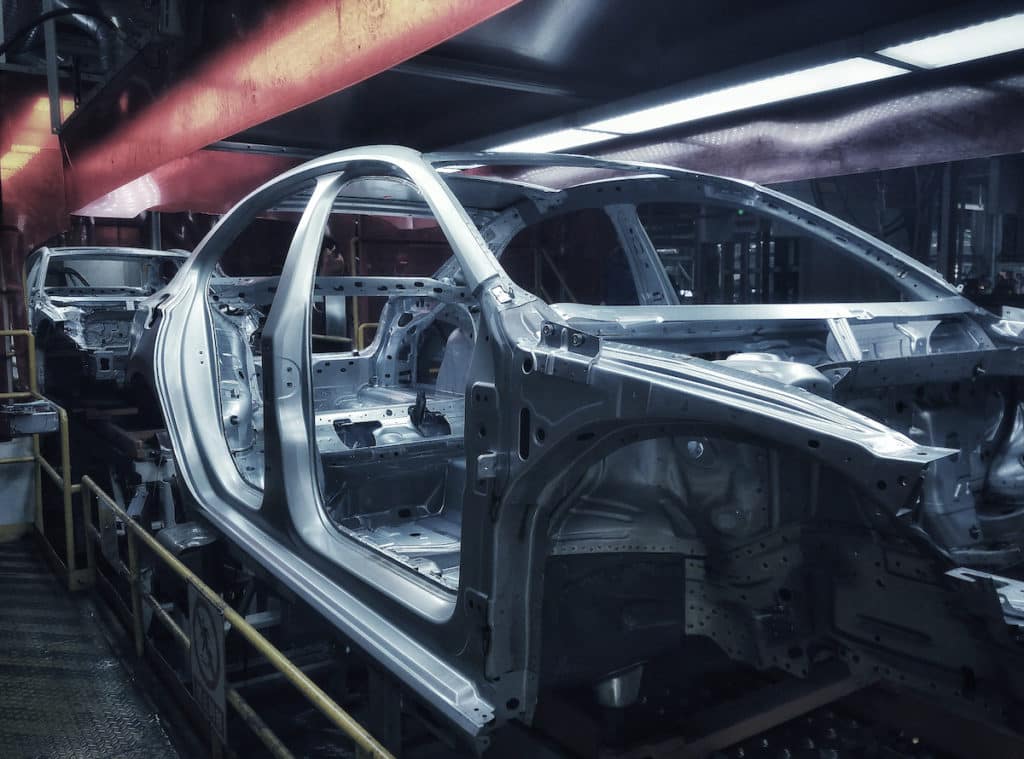

Unibody: Typically involves a more complex manufacturing process as the entire structure needs to be precision-engineered to ensure strength and durability, potentially increasing production costs.

8. Noise, Vibration, and Harshness (NVH) Control

Body-On-Frame: Due to the separate construction of the body and frame, there can be more transmission of noise and vibration from the road and engine into the cabin. While modern advancements have improved NVH control in these vehicles, they generally are not as quiet as unibody constructions.

Unibody: Generally offers better NVH control because the single integrated structure can be designed to absorb and dampen noise and vibrations more effectively. This results in a quieter and smoother ride, which is particularly noticeable on highways and rough surfaces.

9. Space Utilization

Body-On-Frame: The presence of a distinct frame can sometimes reduce the amount of usable interior space and cargo capacity because the design requires more space for the frame structure itself. This can be a drawback for vehicles where space efficiency is crucial.

Unibody: Typically allows for more efficient use of space. The absence of a bulky frame underneath the body means that unibody vehicles can offer more interior room and cargo space relative to their exterior dimensions, making them ideal for passenger vehicles where space is at a premium.

10. Flexibility in Vehicle Design

Body-On-Frame: This type of construction is less flexible in terms of vehicle design because the body must be designed around an existing frame. However, it does allow for easier customization and modifications, like adjusting the body or upgrading components for specific uses such as off-roading.

Unibody: Offers greater design flexibility, which allows manufacturers to create vehicles with more varied and aerodynamic shapes. This flexibility can lead to better overall aesthetics and more innovative designs in passenger cars.

11. Market Preference and Trends

Body-On-Frame: Remains popular in certain segments such as trucks, large SUVs, and commercial vehicles, where durability and towing capacity are paramount. However, the trend in general consumer markets has been moving away from body-on-frame due to the increasing importance of fuel efficiency and ride quality.

Unibody: Has become the dominant construction type for passenger cars and smaller SUVs. Market trends favor unibody designs as consumers look for vehicles that are safe, efficient, and comfortable. The shift towards unibody is also driven by the global emphasis on fuel economy and emissions standards.

12. Longevity and Corrosion Resistance

Body-On-Frame: These vehicles can often have longer lifespans, especially in models where the frame is well-protected or treated against corrosion. Their rugged construction makes them ideal for long-term use in demanding conditions.

Unibody: While unibody vehicles are designed to last, the integrated nature of the body and frame means that if the structure begins to corrode, it can compromise the entire vehicle’s integrity. Advances in materials and protective coatings have improved their longevity and resistance to corrosion.
